SED1200EMU

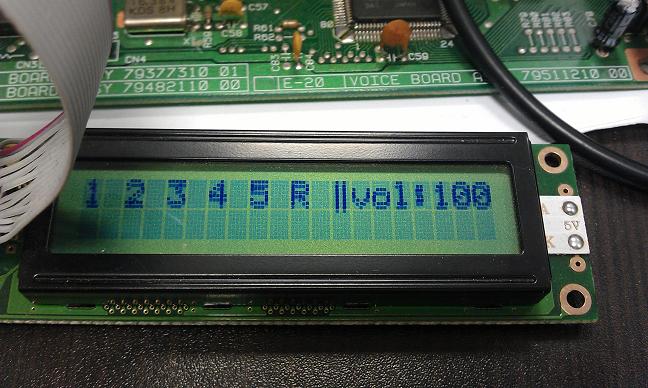

This Emulator is intended to replace hard-to-obtain Epson SED1200 based LCD modules with common HD44780 ones.

• Eagle schematics: sed1200emu.sch
• Eagle PCB: sed1200emu.brd
• Firmware: Binary .HEX Sources .ZIP

The PCB is one-sided, a few wire jumpers will have to be soldered to ensure GND continuity throughout the board.

Links

• http://www.dougrice.plus.com/hp/LCDdata/index.htm - docs and code samples for many LCD modules
• MT-32 service manual: mt32service.pdf.gz (2Mb)
• SANYO DM2011 20x1 LCD datasheet: dm2011.pdf
• SED1200 Datasheet: sed1200.pdf

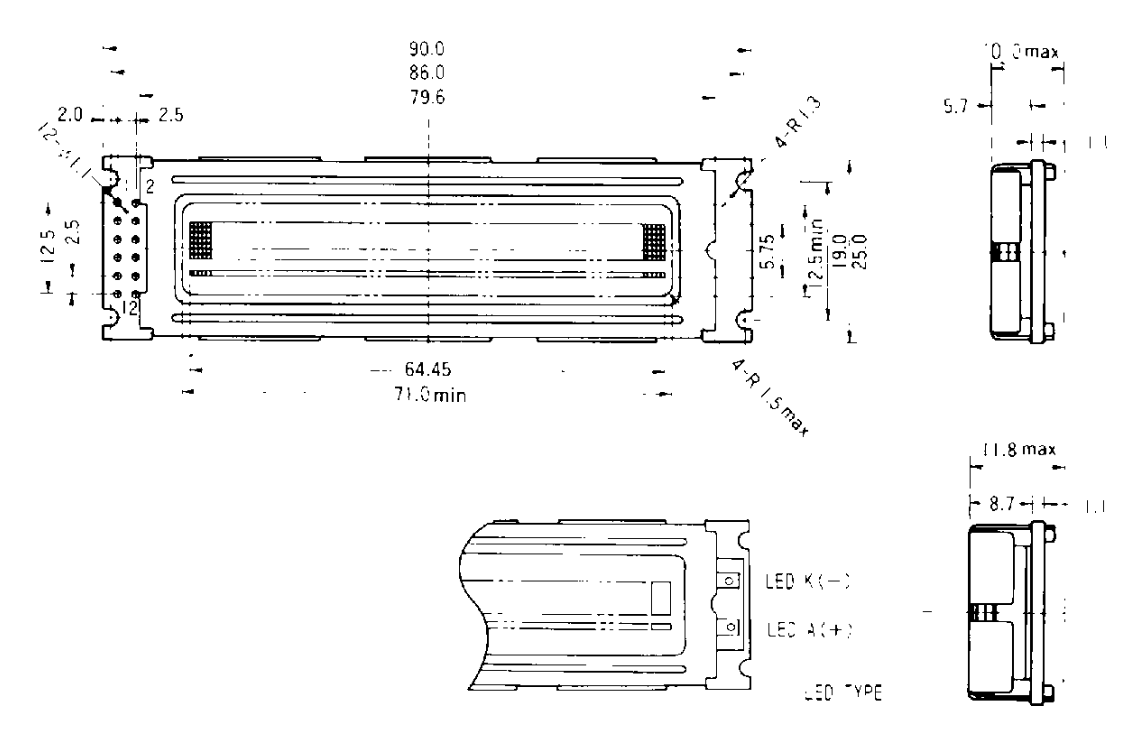

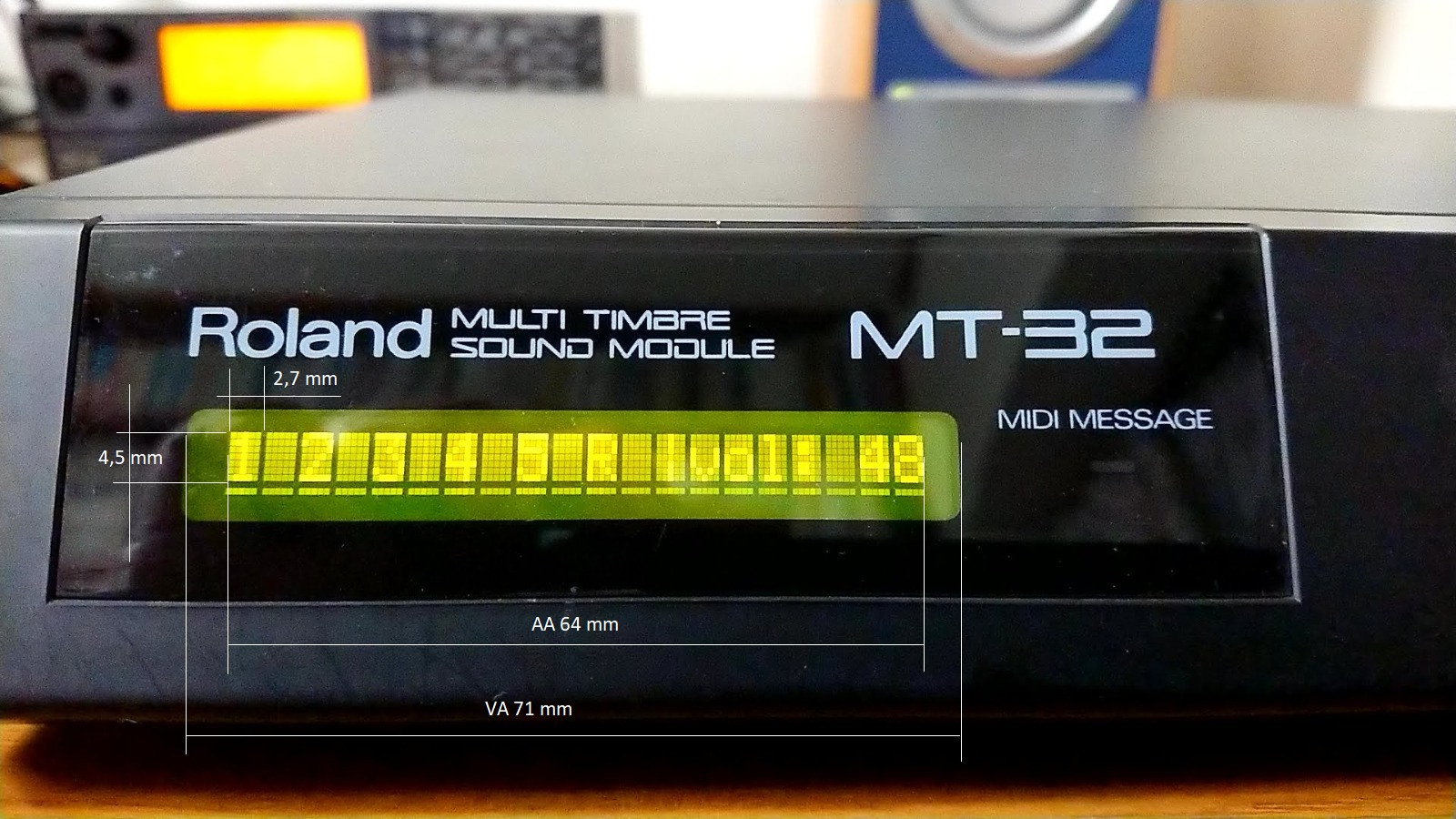

Dimensions
